New part of the course.

Recall

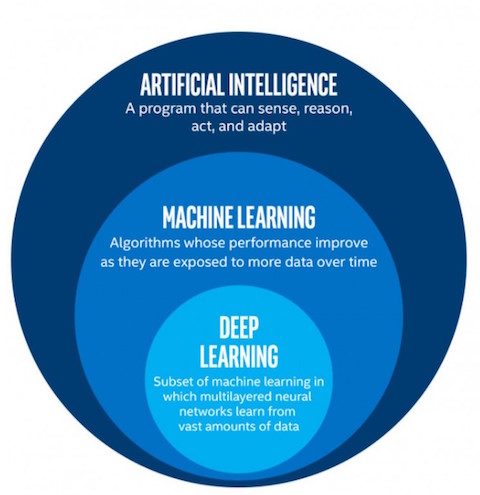

AI vs. ML

Machine Learning (ML)

• In ML, the system learns patterns from data and uses these patterns to make predictions or decisions on new, unseen data or generate “new” data.

Machine Learning (ML) Systems

• An ML system is a software system that incorporates machine learning models to perform specific tasks or provide certain functionalities.
• The ML component of an ML system may be relatively small compared to the overall system, but it plays a crucial role in enabling “intelligent” behavior.
  • This includes personalization, i.e., adapting behavior based on user data and preferences.
• ML systems often involve data collection, preprocessing, model training, evaluation, deployment, and monitoring.

Challenges in ML Systems

• Building and maintaining ML systems presents unique challenges compared to traditional software systems.
• These challenges arise from the inherent complexity of ML models, data dependencies, and the dynamic nature of real-world environments where these systems operate.

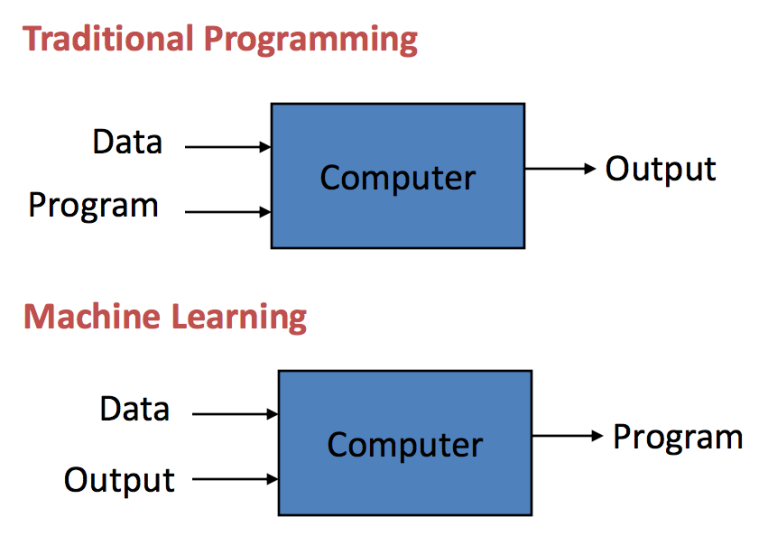

Traditional Programming vs ML

Programming vs ML

Complexity in Engineering (Software) Systems

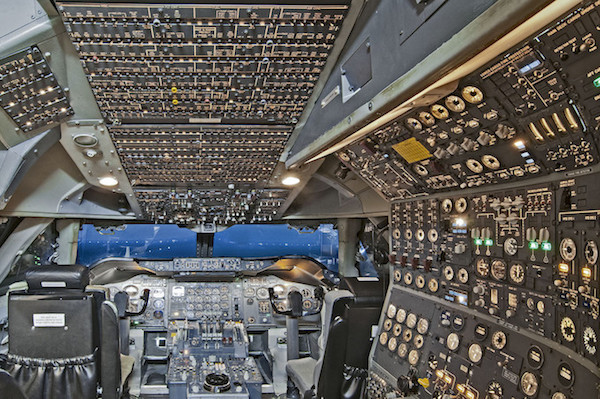

Airplane

• Automobile: ~30,000 parts; Airplane: ~3,000,000 parts
• MS Office: ~ 40,000,000 LOCs; Debian: ~ 400,000,000 LOCs

Q: How do we build such complex systems?

Managing Complexity in Software

• Abstraction: Hide details & focus on high-level behavior.
• Reuse: Package into reusable libraries & APIs with well-defined contracts.
• Composition: Build large components out of smaller ones.

public class Algorithms {

    /**
     * Finds the shortest distance between to vertices <code>v1</code>
     * and <code>v2</code> in graph <code>g</code>.
     *
     * This method is only supported for connected vertices.
     */
    public static int shortestDistance(Graph g, Vertex v1, Vertex v2) {
        // ...
    }
}

(Lack of) Modularity in ML

• Often no clear specification of “correct” behavior.
  • Optimizing metrics instead of providing guarantees.
• Model behavior strongly dependent on training & test sets.
  • What happens if distribution changes?
• Poorly understood interactions between models.
  • Ideally, develop models separately & compose together.
  • In general, must train & tune together.

Concept Drifts

• ML estimates “f(x) = y”
  • What if the relationship between “x” & “y” changes over time?
  • What if “f” does not capture certain relationships?

Q: Examples?

• In general, impossible to predict.
  • Continuously monitor and update model.

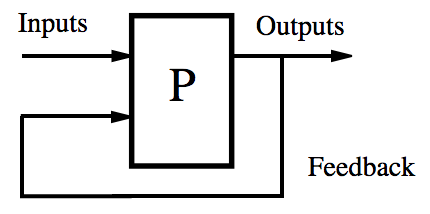

Feedback Loops

• Every system is deployed as part of an environment.
• Output influences the environment.
  • In turn, affects input back to the system.
  • Over time, may lead to undesirable (and difficult to reverse) outcome.
  • Higher risks if initial data set & model is biased.

Feedback Loop

Example: Crime Prediction

1. Use past data to predict crime rates.
2. Police increases the frequency of patrol in area X.
3. More arrested made in area X.
4. New crime data fed back to the model.
5. Repeat.

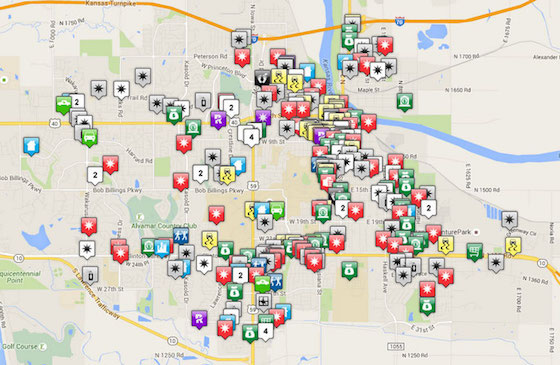

Crime Map

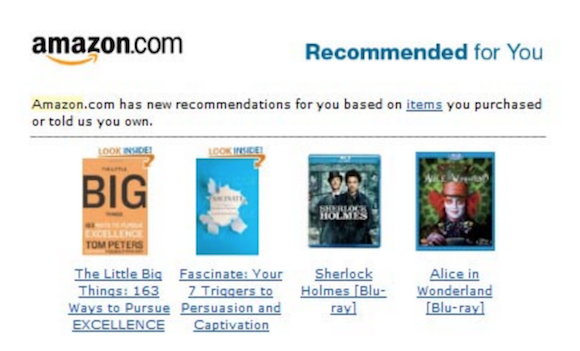

Discussion: Product Recommendations

Product recommendations

1. Specification/metrics?
2. Concept drift?
3. Feedback loop?

Discussion: Streaming Recommendations

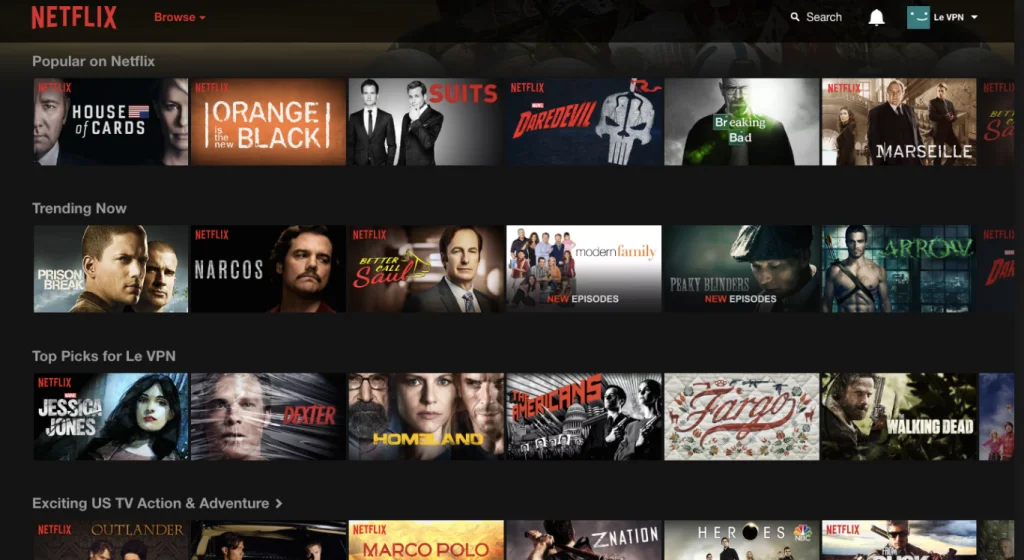

“How Does Amazon & Netflix Personalization Work?” by Astha Khandelwal

1. Specification/metrics?
2. Concept drift?
3. Feedback loop?

Technical Debt

“Machine learning: The high interest credit card of technical debt” – Sculley et al. 2014

Technical Debt

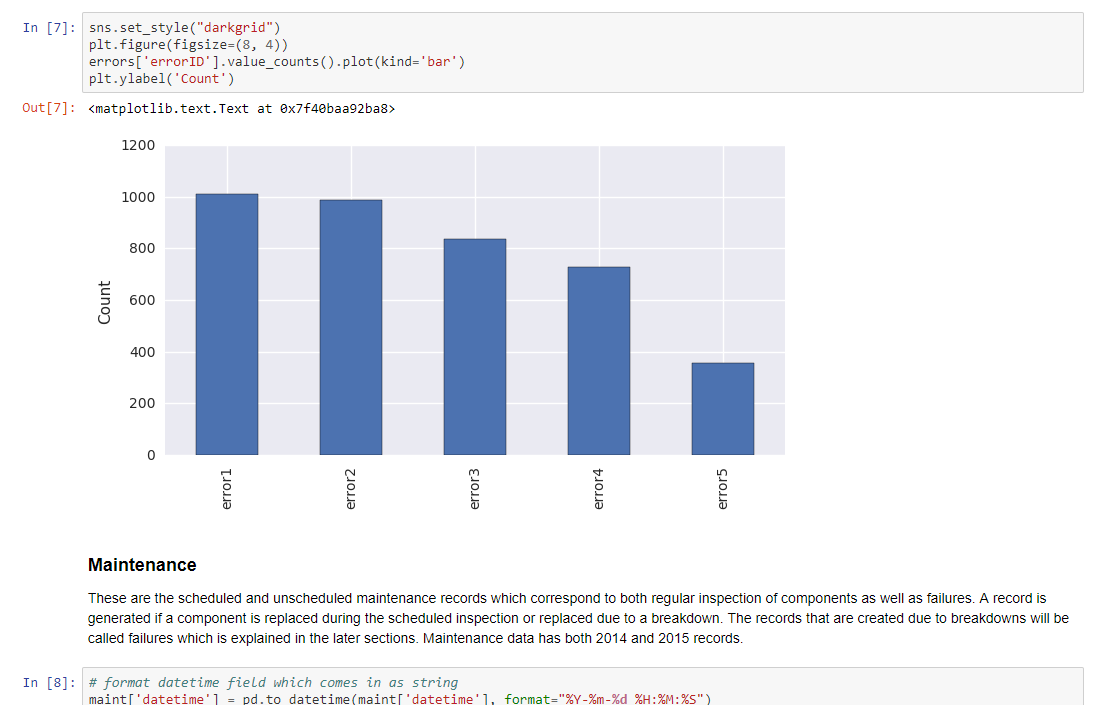

The Notebook

Jupyter Notebooks are a gift from God to those who work with data. They allow us to do quick experiments with Julia, Python, R, and more – John Paul Ada

Q: What are some benefits and drawbacks of Jupyter-style notebooks?

Notebooks

Pros

• Quick and easy exploration and experimentation.
• Literate programming intermixing text, code, and results.
• Small code snippets, heavy use of libraries.
• Blocks may execute independently (good or bad?).

Cons

• Proof of concept on snapshot data only.
• Poor abstraction and testing practices.
• Low automation, often not scalable.
• Difficult transition in production.

Questions

Q: What may notebooks be good for (something we learned in this class!)?

ML and Technical Debt

• ML can seem like an easy addition, but it may cause long-term costs.
• Needs to be maintained, evolved, and debugged.
• Goals and environment may change; some changes are subtle.

Example Problems

• Systems and models are tangled; changing one has cascading effects on the other.
• Untested, brittle infrastructure; manual deployment.
• Unstable data dependencies, replication crisis.
• Data drift and feedback loops.
• Magic constants and dead experimental code paths.

Further Reading

Sculley, David, et al. Hidden technical debt in machine learning systems. Advances in Neural Information Processing Systems. 2015.
